Ballasted vs Penetrating Flat-Roof Solar Mounting: How to Decide

Answer first: load reserve and membrane policy decide it

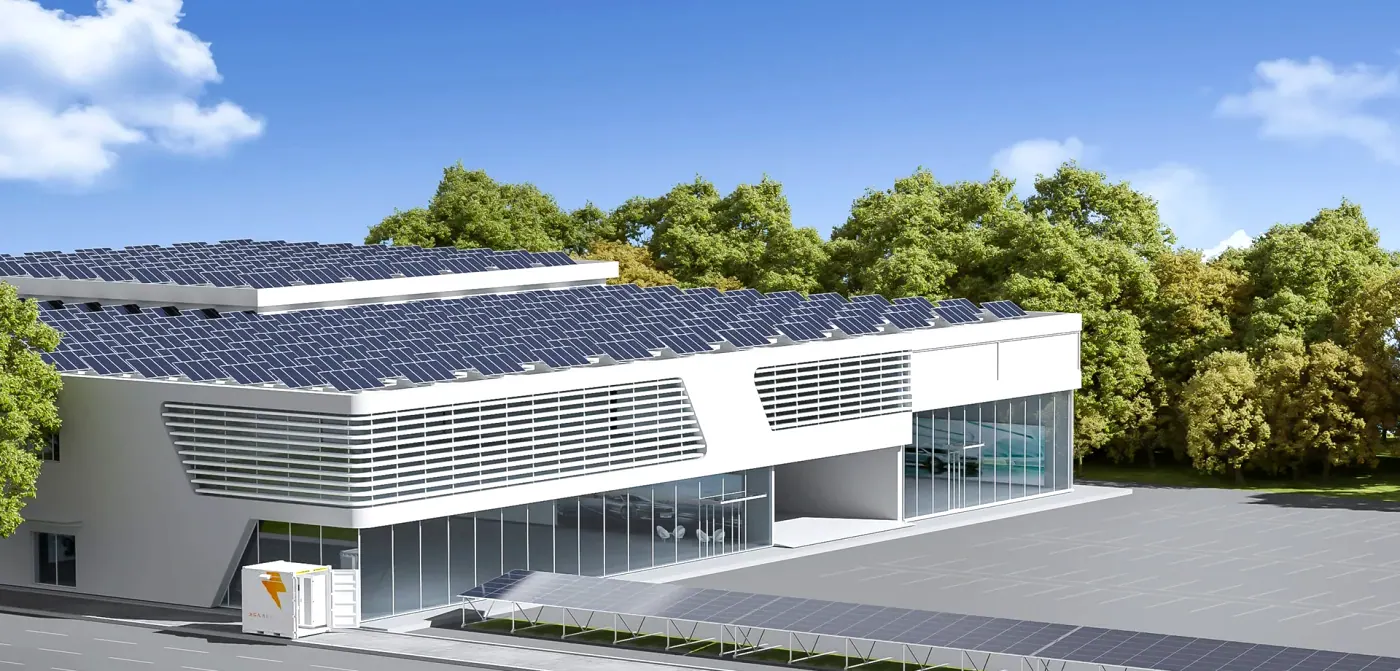

On a flat roof, use a ballasted system when the roof has spare structural capacity and the owner or membrane warranty restricts penetrations; use a mechanically fixed (penetrating) system when the roof cannot carry the ballast weight, when wind exposure is severe, or when the deck offers a reliable anchor point and the waterproofing detail can be executed properly. The choice is not a preference between two philosophies - it is set by three measurable inputs: the roof load allowance, the membrane and deck type, and the design wind uplift at the specific building.

This guide explains how those inputs interact, and where hybrid layouts are the practical answer. It complements the broader C&I rooftop guide and the roof mounting selection guide, which cover the wider roof family; here the focus is the flat-roof fixing decision itself.

What the two methods actually do

A ballasted system resists wind uplift with mass, friction and shape. Modules sit in a low-tilt frame or tray, weight is added as concrete blocks, pavers or ballast trays, and the layout is arranged so that wind flows over the array rather than under it. Nothing penetrates the roof. Apex covers this with the single-side ballasted system and the east-west ballasted system, both in a 5-15 degree tilt range with a non-penetrating interface reviewed per roof.

A penetrating system resists uplift by anchoring into the structure - through the membrane into the deck, or into the structural frame below. Weight drops dramatically because the anchors, not gravity, hold the array down, and higher tilts become practical. Apex serves this case with the Tripod Matrix and DuoTripod RMIV systems, in a 10-30 degree tilt range, where the interface is reviewed per project as concrete, membrane or roof fixing.

Membrane and deck type set the boundaries

Single-ply membranes (TPO, PVC)

Thermoplastic membranes are common on modern commercial roofs and can be hot-air welded, which makes properly detailed penetrations repeatable - flashing sleeves and welded patches are standard practice. They also work well with ballast, provided a protection mat or slip sheet separates the mounting from the membrane and bearing pressure is spread. Compatibility matters: some plasticised membranes react with certain materials, so protection layers should be confirmed as compatible rather than assumed.

EPDM

EPDM is bonded or taped rather than welded, so penetration details rely on adhesives and primers and are more sensitive to workmanship and weather at installation. Ballasted layouts are frequently preferred, and many EPDM roofs are already ballasted with gravel, which itself has to be accounted for in the load calculation and in the array bearing detail.

Bituminous and built-up roofing

Modified bitumen roofs are usually robust underfoot and tolerant of ballast, and torch- or self-adhesive-applied flashing details are well established. Age is the key variable: on an older built-up roof approaching the end of its life, neither method is sensible until the covering is renewed, because the array will otherwise have to be removed for re-roofing.

Concrete decks and structural frames

An exposed or lightly covered concrete deck offers the most reliable anchor of all and normally has substantial load capacity, which makes either method viable. Steel decks with insulation are a different case: the anchor should reach a purlin or beam rather than rely on the deck sheet alone, so the structural drawing matters as much as the membrane specification.

Roof load reserve is the gate

Ballast is only available if the structure has spare capacity. That capacity comes from the roof structural drawing and the load allowance stated by the structural engineer, minus what is already committed - existing gravel or paving, rooftop plant, and the snow load the roof must still carry. Snow and ballast combine, which is why heavy-snow regions often push flat-roof projects toward mechanically fixed layouts; the wider issue is covered in the heavy-snow mounting guide.

Two further points are routinely missed. First, ballast is not distributed evenly: uplift is far higher at corners and edges, so those zones need much more weight than the field area, and the local point load under a bearing block can govern rather than the average load per square metre. Second, older buildings may have limited documentation, in which case a structural assessment is a prerequisite, not an optional extra. Where the reserve is thin, a mechanically fixed system or a hybrid usually delivers the project that ballast cannot.

Wind uplift: two different strategies

Wind is the load case that decides flat-roof mounting. An array on a flat roof sits in a separated, turbulent flow region, and uplift concentrates where that flow accelerates: at the roof perimeter, and most severely at corners. Uplift also increases with building height and with exposed terrain, which is why the same product needs a different fixing schedule on a two-storey warehouse and on a twelve-storey block.

A ballasted design answers this with mass and shape - low tilt to reduce the exposed profile, wind deflectors or shrouds to prevent flow getting under the modules, ballast concentrated in the perimeter and corner zones, and continuous mechanical connection between frames so that adjacent rows share load rather than lifting individually. Set-backs from the roof edge are one of the most effective measures available, since moving the array out of the worst zone reduces ballast demand across the whole layout.

A penetrating design answers it with anchors sized and spaced to the calculated uplift, again densified at edges and corners. Its analysis is simpler and its weight is lower, but every anchor must resist both uplift and shear while remaining watertight for decades. Apex reviews both approaches against a wind basis of up to about 60 m/s depending on roof zone and configuration - a review basis for a defined layout, not a blanket rating, as explained in the wind and snow load guide.

When each method is appropriate

Choose ballasted when

• The roof structure has documented spare load capacity after snow and existing plant are accounted for.
• The membrane warranty or the building owner prohibits or discourages penetrations.
• The roof is a sound single-ply or bituminous system with good remaining life.
• The building is low to mid-rise with moderate wind exposure, and set-backs from the edge are possible.
• Reversibility matters, for example on a leased building where the array may be removed.

Choose penetrating when

• The roof load reserve is limited, unknown or already committed.
• Wind exposure is high - a tall building, an exposed coastal or open site, or a severe wind region.
• A reliable structural anchor exists, such as a concrete deck or accessible purlins, and a competent roofing contractor can execute and warrant the detail.
• A higher tilt is wanted for yield or for snow and rain shedding, which raises uplift beyond what reasonable ballast can hold.
• The roof is being renewed anyway, so mounting anchors can be integrated with the new membrane.

Hybrid layouts, drainage and detailing

The most common real-world answer is a hybrid: ballast through the sheltered field area, structural anchors at corners and edges. This holds total roof load down while limiting penetrations to a small, well-detailed number - and it often makes a project feasible on a roof where neither pure method works.

Three details decide long-term performance regardless of method. Drainage first: rows, ballast blocks and cable trays must not dam water or block outlets, so the layout should follow the drainage plan and leave clear paths and access to gullies. Thermal movement second: a large aluminium array expands and contracts, so bearing points need protection mats and the structure needs the intended movement joints - a rigid, un-detailed layout abrades the membrane over years. Materials third: aluminium, stainless and steel components should be matched to the roof environment and to each other to avoid galvanic problems, as covered in aluminium vs steel mounting structures and the corrosion protection guide.

Inputs for a flat-roof mounting review

To specify a flat-roof system properly, send the roof structural drawing and stated load allowance, the membrane or deck type with age and condition, the existing ballast or gravel, parapet height, the drainage layout, building height and surrounding terrain, the design wind and snow basis, the module datasheet and intended layout or capacity, and the owner's policy on penetrations and warranties.

With that package Apex can compare a ballasted layout, an east-west ballasted layout and a mechanically fixed tripod layout against the same roof, and state the resulting load, fixing schedule and component scope. The full roof mounting range and every datasheet are available in the download centre, and the project data checklist lists the inputs in full.
