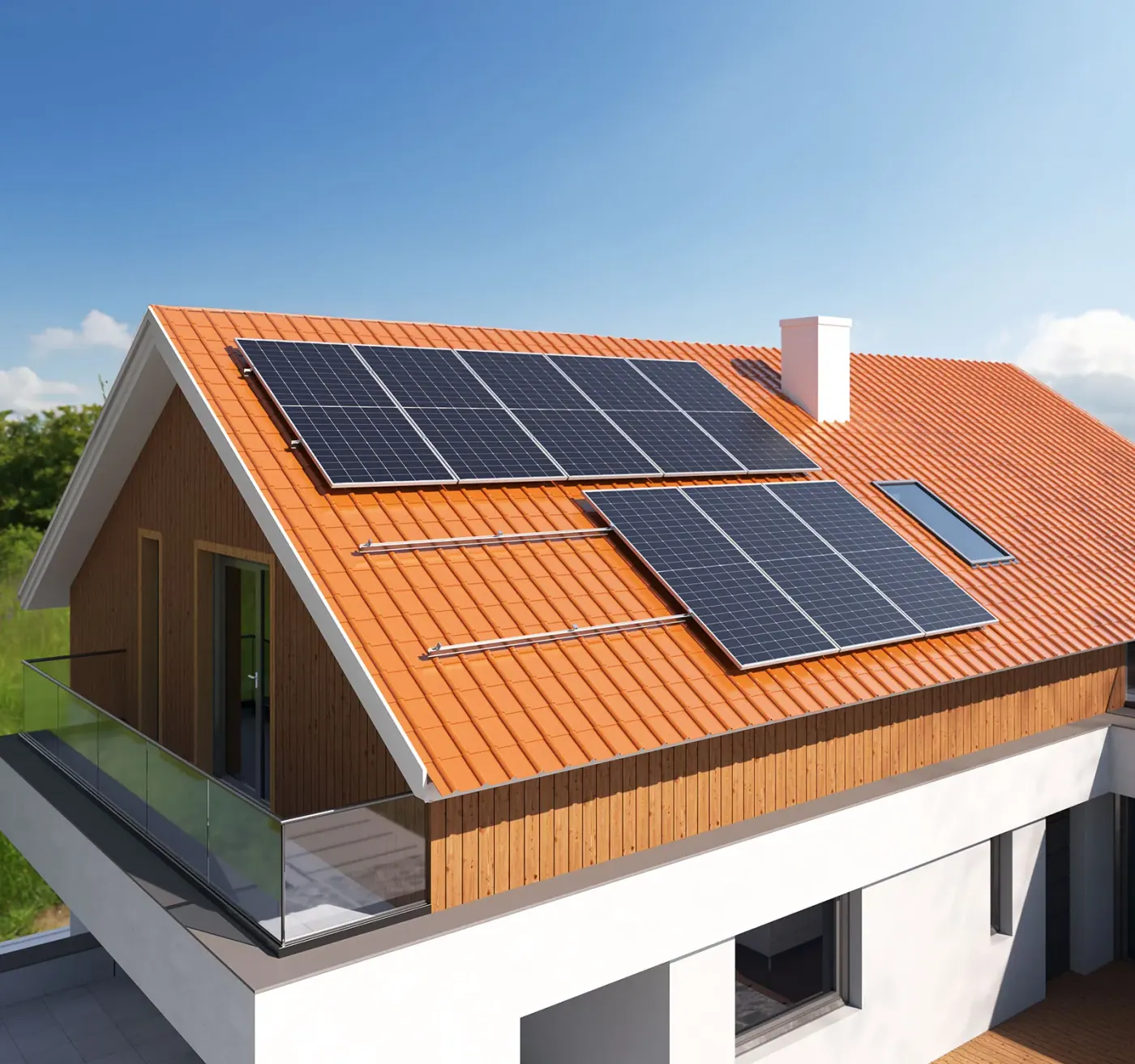

ApexRoof Tile Hook Mounting System
Tile Roof Solar Mounting System
Tile roof solar mounting system for pitched-roof PV projects with hook selection and fixing review.
Quick specification
Key project review values
Use these parameters for first screening. Apex aligns final load basis, dimensions and BOM with project inputs.
| Application | Residential and commercial pitched-roof PV projects |
|---|---|
| Interface | Tile, flat tile, slate tile or asphalt shingle by hook selection |
| Tilt Angle | 5-45° typical roof-mounted project range |
| Wind Load | Up to 60 m/s (134 mph) |
| Snow Load | Up to 1.6 kN/m² (33 psf) |
| Material | AL6005-T5 rails, SUS304 fasteners and sealing parts |
| Warranty | 12-year product warranty |
| Finish | Anodized aluminum finish; stainless fasteners; EPDM or waterproof interface parts where required |
| Module Compatibility | Framed modules, typical 30-50 mm frame; clamp zone and rail spacing by module installation guide |
| Design Basis | ASCE 7-16/7-22, IBC 2021/2024, EN 1991/1993/1999, AS/NZS 1170 and local roof code by project |
| Design Life | 25-year design service life target by project condition |
| Engineering Output | Layout drawing, structural calculation basis, BOM/MTO, packing list and material documentation by order scope |
RFQ preparation
Get this system matched to your project scope
For faster review, send the module datasheet, layout drawing, local wind/snow basis and the roof, foundation or anchoring condition. The Apex engineering team replies within one working day.
Project location and codeModule datasheetLayout drawingInterface or soil data
Advantages
Why buyers specify this system
Practical advantages focused on installation, matching and project review.
Hook selection by roof type
Matched to the roof profile, sheet thickness and purlin condition so the fixing method suits the actual surface.
Clean load transfer to roof structure
Waterproofing interface, sealing parts and clamp zone are reviewed before the BOM is released.
Adjustable hook options
Fixing density is balanced against roof-zone wind uplift for the specific array layout.
Residential and commercial fit
Short-rail and clamp detailing reduces components and on-site installation time.
Engineering support
Apex helps define the design envelope, system interface, component scope and quotation-ready BOM. This product is supported by a customer technical datasheet.
Download ApexRoof Tile Hook Mounting System datasheetFAQ
Which roof types does the ApexRoof Tile Hook fit?
The mounting interface is tile, flat tile, slate tile or asphalt shingle by hook selection. Apex verifies the roof profile and fixing condition against project drawings before quotation.
What wind and snow loads is the ApexRoof Tile Hook designed for?
The review basis is wind load up to 60 m/s (134 mph) and snow load up to 1.6 kN/m² (33 psf). Final values are confirmed by structural review against the project design basis (ASCE 7-16/7-22, IBC 2021/2024, EN 1991/1993/1999, AS/NZS 1170 and local roof code by project).
What tilt angles does the ApexRoof Tile Hook support?
The tilt range is 5-45° typical roof-mounted project range.
What warranty does the ApexRoof Tile Hook come with?
It is covered by a 12-year product warranty.
What materials is the ApexRoof Tile Hook made from?
The structure uses AL6005-T5 rails, SUS304 fasteners and sealing parts.
